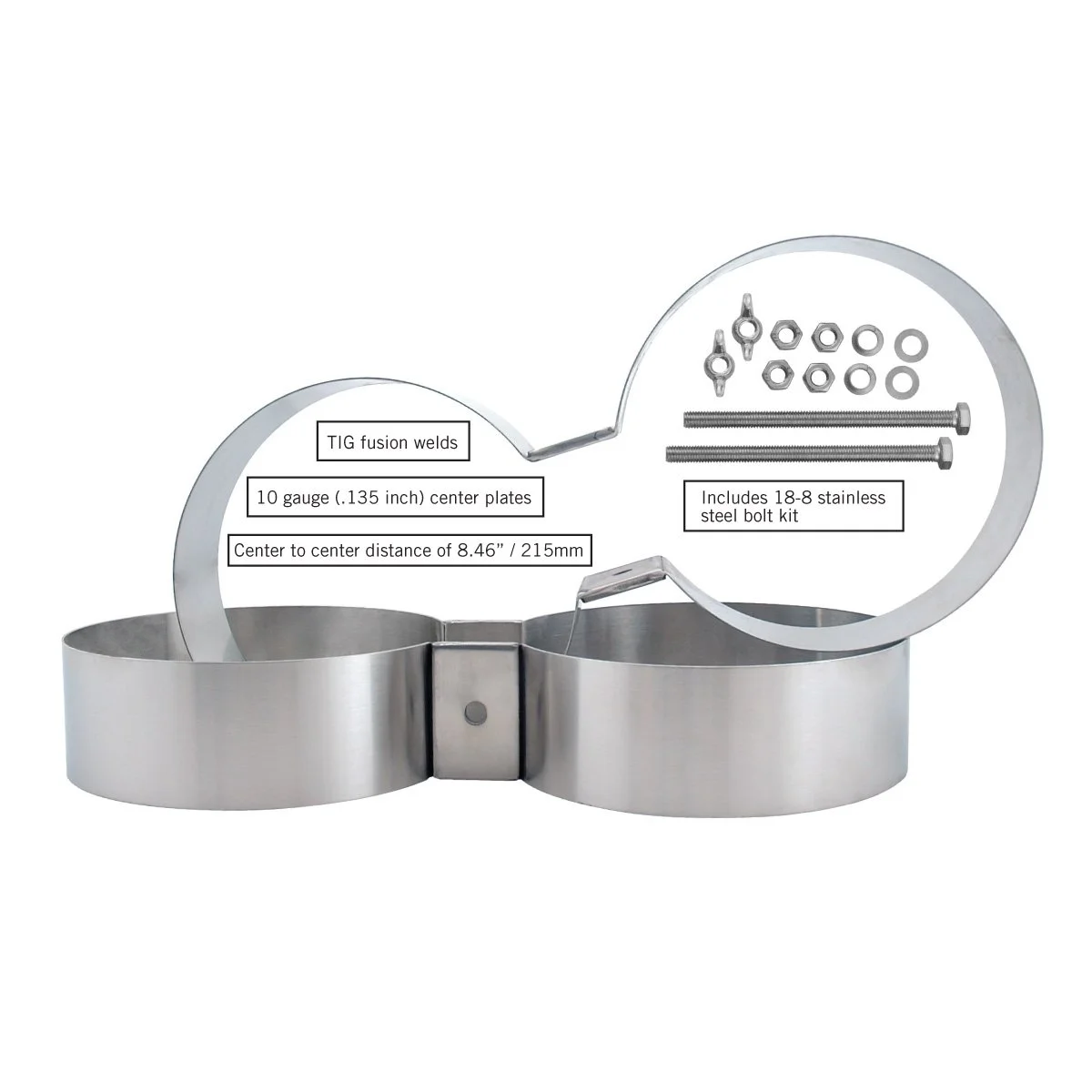

Highland Twin Cylinder Bands
Highland Twin Cylinder Bands
Precision manufactured to the exact specifications of Joe McGrath’s original Highland Millwork bands
Deburred and polished edges to protect your cylinder paint/finish
18 gauge (.048 in) 304 grade stainless steel
Polished fusion welds
Polished #4 stainless steel finish
Final finish completed by hand
The only choice of experienced technical divers
Available in two sizes
7.25 in (184 mm), includes Bolt Kit BK725
8.00 in (203 mm), includes Bolt Kit BK800
Bolt Kit Specifications:
BK725
2 pieces 3/8-16 x 5” hex head cap screws fully threaded 18-8 SS
2 pieces 3/8-16 wing nuts 18-8 SS
2 pieces 3/8-16 finish nuts 18-8 SS
2 pieces 3/8 medium split washer 18-8 SS
2 pieces 3/8 x 7/8 OD flat washer 18-8 SS
BK800
2 pieces 5/16-18 x 5.5” hex head cap screws fully threaded 18-8 SS
2 pieces 5/16-18 wing nuts 18-8 SS
2 pieces 5/16-18 finish nuts 18-8 SS
2 pieces 5/16 medium split washer 18-8 SS
2 pieces 5/16 x 3/4 OD flat washer 18-8 SS
p/n
SB725 (7.25 in)
SB800 (8.00 in)
